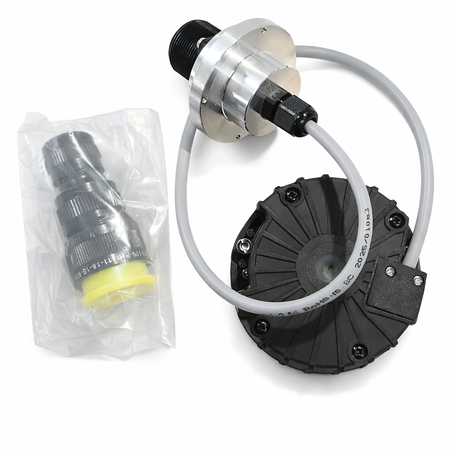

Eltra EH80C1024Z5/28L14X3MR.197+295

IN STOCK!

Equivalent model >>> EH80C1024Z5/28L14X6MR.197+295 <<<

Equivalent model >>> EH80C1024Z8/24L14X3MR.295+197 <<<

Eltra EH80C series of incremental encoders is designed for the precision control of AC servo motors and for use in feedback loops.

In this product line, the functionality of a standard incremental encoder is augmented with Hall-effect sensors, ensuring accurate positioning and efficient motor synchronization. Their compact dimensions, resistance to high temperatures, and well-conceived design allow for quick and straightforward integration into a wide variety of industrial equipment.

Key technical specifications:

• Type: Incremental encoder with a blind hollow shaft
• Housing size: 80 mm
• Resolution: 1024 pulses per revolution (ppr)
• Reference mark: Includes a zero pulse (Z-channel)
• Output interface: Line Driver
• Supply voltage: 5–28 V DC
• Bore (shaft) diameter: 14 mm
• Ingress protection rating: IP54
• Connection type: Radial MIL-standard connector
• Maximum rotational speed: 6000 rpm
