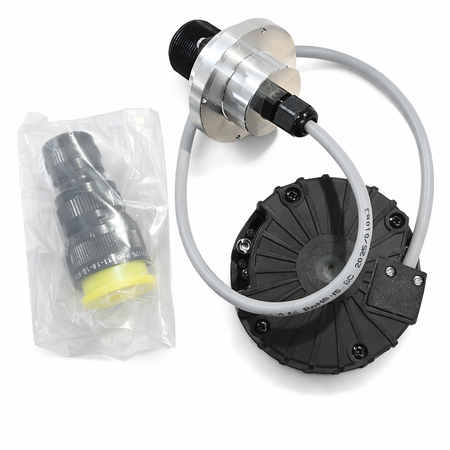

Eltra EH80C2048Z5/28L14X6MR.197+295

IN STOCK!

Equivalent model >>> EH80C2048Z5/28L14X3MR.197+295 <<<

Equivalent model >>> EH80C2048Z8/24L14X3MR.295+197 <<<

Eltra EH80C incremental encoder (model EH80C2048Z5/28L14X6MR.197+295) is designed for AC servo feedback loops. The design combines an optical assembly with Hall sensors, providing precise positioning and correct switching of motor windings at elevated temperatures.

Specifications (Datasheet):

• Encoder type: incremental
• Design: blind hollow shaft
• Case diameter: 80 mm
• Shaft inner hole diameter: 14mm
• Resolution: 2048 ppr
• Reference mark: zero pulse
• Output Interface: Line Driver
• Supply voltage: 5...28 V DC
• Connection type: radial output
• protection class: IP54
• Maximum rotation speed: 6000 rpm
