Eltra EH80C256S5/28PA10X6PR.898

IN STOCK!

Equivalent model >>> EH80C256S8/24PA10X6PR.898 <<<

Equivalent model >>> EH80C256S5/28P10X6PR.898 <<<

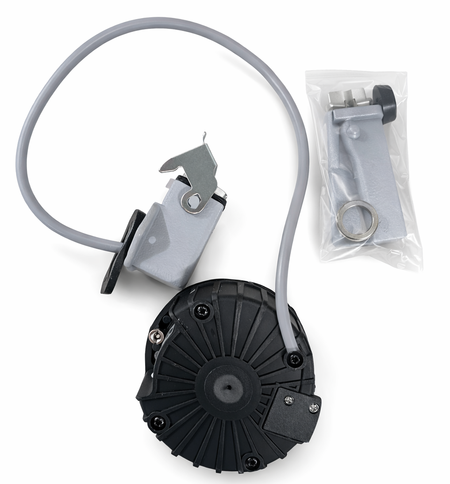

An encoder for servomotors featuring a blind hollow shaft, designed for mounting onto a motor via a synchro flange.

It is equipped with a push-pull output interface based on complementary transistors, which ensures a high data transmission frequency, stable operation at high speeds, and the capability to support longer cable runs. The design is engineered for enhanced reliability, featuring an aluminum shaft and a fiberglass-reinforced housing.

Datasheet:

• Application: Feedback sensor for servomotors
• Design: Blind hollow shaft
• Shaft (bore) diameter: 10 mm
• Mounting type: Synchro flange mount
• Output interface: Push-pull (complementary transistor output)
• Reference mark: No zero pulse (no Z/index channel)
• Construction materials: Aluminum shaft, fiberglass-reinforced housing
• Features: High operating frequency, stable signal transmission over longer cable lengths
