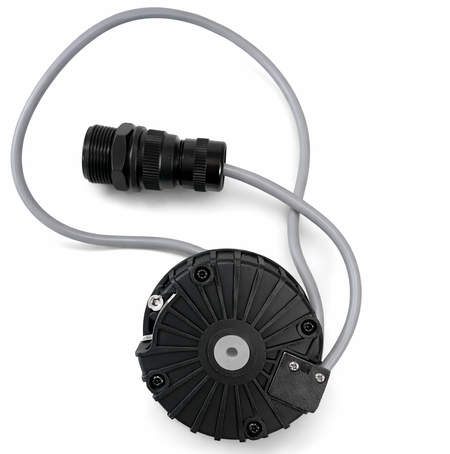

Eltra EH80K1024S5/28RS10X6PR0,7.942

IN STOCK!

Equivalent model >>> EH80K1024S8/24L10X6PR0,7.037+942 <<<

Eltra EH80K series of incremental encoders (80 mm housing diameter), featuring a hollow shaft and rear mounting, is specifically designed for feedback loops in AC servo motors. These models combine the functionality of a standard incremental encoder with Hall-effect sensor phases for motor winding commutation.

The series is characterized by its high-temperature resistance, compact design, and reliability when operated in demanding industrial environments.

Datasheet:

• Configuration: Blind hollow shaft with rear mounting
• Housing diameter: 80 mm
• Shaft (bore) diameter: 10 mm
• Resolution: 1024 pulses per revolution (ppr)
• Zero pulse: None (no Z-channel)
• Output signal: RS-422 (Line Driver)
• Supply voltage: 5–28 V DC
• Maximum rotational speed: 6000 rpm
• Ingress protection rating: IP54
• Connection type: Radial cable, 0.7 m in length
