IN STOCK!
Equivalent model >>> ER63E800Z5/28P10S3MR.640 <<<

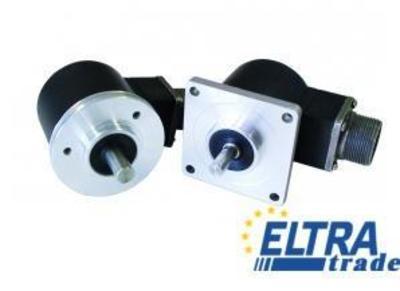

Optical incremental encoder with a solid shaft, designed to withstand high radial and axial mechanical loads. Engineered for reliable operation in demanding industrial environments.
Technical Datasheet:
- Optical incremental Solid shaft
- Housing diam.: 63 mm
- Shaft diam.: 10 mm
- Flange: 50 mm square mounting flange
- Resolution: 800 pulses per revolution
- Includes a zero pulse (Z-channel)
- Protected Push-Pull (AEIC-7272 driver)
- Supply voltage: 8–24 V DC
- Protection rating: IP66
- Max. rotational speed: 3000 rpm
- Connection type: Radial M-type connector
